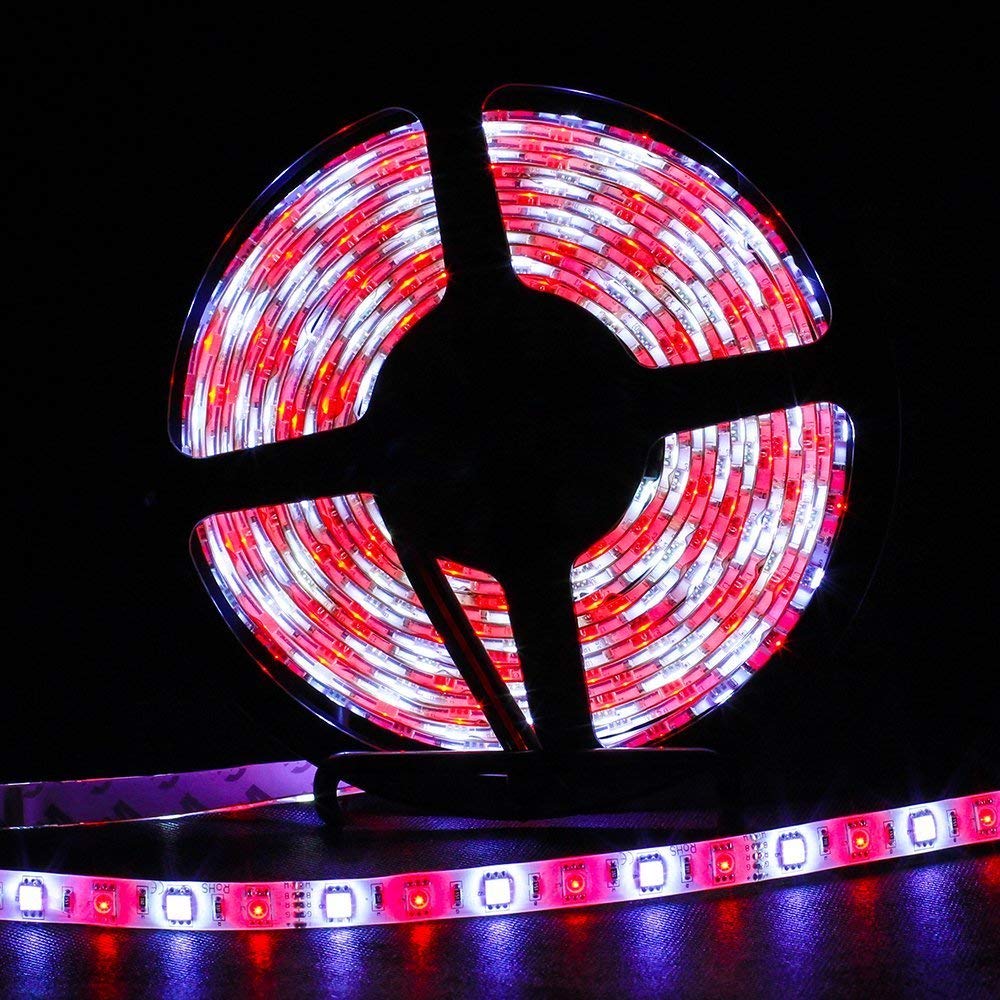

RGBW led strip: 2 in 1 design with 150pcs RGB LEDs and 150pcs white LEDs
44Keys infrared Music LED Controller adopts the advanced micro control unit
RGBW/RGBWW Music controller is widely used for controlling RGBW/RGBWW flexible led strip
Adjusting brightness, static colors and color changing effects through IR remote control
When it is in sound-control mode, the colors will change with the rhythm of music
Specifications:
Strip light:
1. Color: RGB+Cool White
2. LED Quantity: 60LEDs/m, 300LEDs/roll(150pcs RGB LED and 150pcs White LED)
3. View angle: 120°
4. Voltage: 12V DC
5. Current: 5A/roll
6. Power: 60W /roll
7. Strip width: 10mm PCB Board
8. Working Temperature:-20 to 50℃
9. Waterproof IP65
Controller:
Color:20 Colors
Connection Mode: Common anode
Special function: Sound Control
Supply voltage: DC 12V-24V
Output current: 3*2A
Control box dimension: 50mm x 34mm x 22mm ¡À 0.2mm
Remote controller dimension: Size:124 (L) ¡Á56(W) ¡Á 6 (H) ¡À 0.2mm
Remote batteries: CR2025
Control range: 10cm - 500cm RGBW LED Strips
Power supply:
Input: 100-240V AC 50/60Hz
Output : 12V 5.0A
Size:12.4*5*3.1cm
AC Cable length: about 104CM
DC Cable length: about 100CM
DC connector size: 2.1*5.5mm
