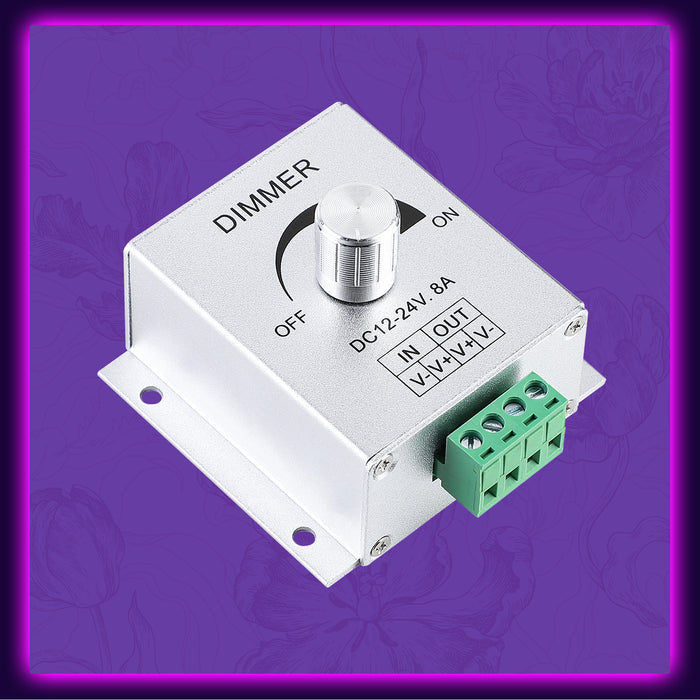

SUPERNIGHT Aluminium Case DC12V 8A Single Channel Knob Dimmer Controller For LED strip Bulb Lamp Light 5050 3528 5630 single color LED Strip

Save 33%
Original price $11.99
Current price $7.99

DC 12V 8A single channel inline PWM mini led dimmer controller
Widely used for SMD 3528 / 5050 /5630 / 5730 /3014 single color led strip, Not for RGB strip
Easy install with the screw-in input and output terminals, pre-drilled mounting holes provides for fixed lighting projects
Constand voltage and constand current output, can be connected with amplifiers to extend its load.
100% - 0 full range dimming capability and smooth dimming experience with rotatory knob, also works as ON/OFF switch


* 100% brightness adjustment knob stepless dimming
* 256 gray scale, mild stable lighting, no flicker
* PWM digital dimming, eliminate current surges, so that LED to achieve a better life
* Constant current constant voltage, exceeding the load range can be connected to the signal amplifier, an unlimited expansion of power
* The main control monochromatic light dimming

Technical Parameters:
* Work Temp.:-20-60
* Supply Voltage:DC12V
* Max load current:8A
* Product Size:89*60*53mm
* Package Size:109*65*55mm
* Housing Material: Aluminum Alloy
* N/W:60g
* G/W:85g

the "IN" connect DC12V Power, "OUT" connect light strip, where "V +" take positive "V-" take negative. Rotary light dimmer knob you can adjust the brightness, rotate counter- clockwise until the lights dimmed out, clockwise rotation of lights brighten.

Package included:
1x Dimmer?? (PS: Only the Dimmer,Power/LED Strip in the picture NOT included)
