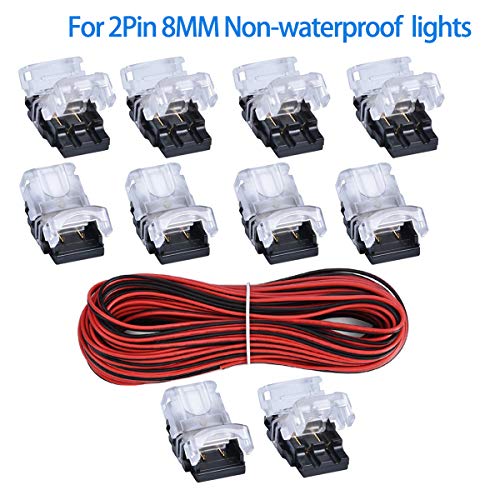

SUPERNIGHT 10 Pack 2 Pin LED Connector for Non-Waterproof 8mm 3528 2835 Single Color LED Strip Lights, Strip to Wire Quick Connection Without Stripping Wire

Brand: SUPERNIGHT

Color: Connector + Wire

Features:

• Connect strip to wire without stripping insulation, no soldering, quick and flexible connection, save 2/3 time
• Work for non-waterproof 8mm width 3528 2835 3014 single color 2 pin strip light 30-120 LEDs/Meter, suit for 22-20 AWG Solid Wire / Strand Wire
• Compatible with 5v, 12v, 24v led strips, support up to 5A current-carrying, allow you to connect longer LED strips by one connector
• DIY led strip to wire connection length you want, no matter strip-to-wire extension or strip-to-strip jumper, free from the limit of terminal position
• High-quality PVC plastic wire cover and tin-plated copper core ensure steady, safety and long-lasting connection; Fire-proof Nylon housing and high precision brass connector is durable and powerful, firmly bite through the led light strip, much stronger than old-style connectors

Binding: Tools & Home Improvement

Details: These NEWEST DESIGN strip to wire connectors are solutions for non-waterproof 8mm 3528 2835 3014 single color 2 PIN LED light strip connection and extension needs, DIY extension for whatever the wire length you want to connect. NOTE:  1. Make sure your LED light strip is 8mm width 2 pin Non-WATERPROOF strip light. Not work for waterproof or 10mm width led strip lights. 2. Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire.  Installation Guides -Strip End 1.Ensure your LED light strip is Non-waterproof 8mm width and has 2 contacts (+, -). All contacts are clean, and cut the strip straightly. 2.Open the transparent cover of the connector up to 90 degrees. 3.Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the LED light strip into the clasp side, with the 2 contacts of the LED strip sitting on the 2 pins of the clasp. (Note: if you use it for waterproof strip light, need to peel off the silicone on the surface of the led strip around soldering line area) 4.Close the clasp down with force by pliers. --Wire End 1.Cut the desired wire length you need and separated the 2 wires (20-22AWG) around the connection part. 2. Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to the correct wires. 3.Close the transparent cap with pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. The positive wire is matched to "+" input power mark on the strip light surface) Tools Need: A pliers  Package Include 10x Strip to Wire Connectors for 8mm Width Non-Waterproof 2 Pin LED Strip Light 1x 16.4ft 22 Gauge 2 Conductor Extension Cable

Package Dimensions: 7.4 x 4.9 x 0.8 inches
